| Type: | Hydraulic Jack |
|---|---|
| Brand Name: | kpt |
| Product name: | Tipping Hydraulic Jack |
| Color: | red |
| Dies: | 1 |
| Model Number: | Q-160/105x900 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

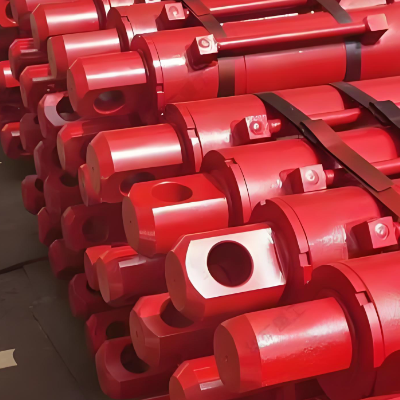

Product name: Pusher Tipping Hydraulic Transmission Jack Support Q-160/105x900
Technical characteristics
1.Power:Hydraulic
2. Bore diameter/p rod diameter: 160/105 mm
3. Stroke: 900mm
4. Working pressure: 31.5M
5. Thrust: 633KN
6. Tension: 360KN
7. Weight: 225KG
Technical requirements
1. Technical requirements shall be accordance with MT97-2010 "Technical Conditions for Jacks of Hydraulic Support".
2. after inspection, first apply CO6-1 iron alkyd primer, then apply CO4-42 alkyd magnetic paint of the same color as the support.
3. Marking, manufacturer, name Q-10/105X900, month and year of shipment, serial number of shipment
4. When shipped as a separate product, anti-rust, anti-ze, and anti-dust measures must be taken, and plastic plugs must be added to both fluid inlets.
Use:Hydraulic jack is the core hydraulic actuator element in the field of mining machinery, coal mine comprehensive mining equipment, etc., which can realize pushing, pulling, lifting, etc. through the telescopic movement of the cylinder body, and is widely used in mining hydraulic support, industrial lifting, building construction and other scenarios.
Technical characteristics
1.Power:Hydraulic
2. Bore diameter/p rod diameter: 160/105 mm
3. Stroke: 900mm
4. Working pressure: 31.5M
5. Thrust: 633KN
6. Tension: 360KN
7. Weight: 225KG
Technical requirements
1. Technical requirements shall be accordance with MT97-2010 "Technical Conditions for Jacks of Hydraulic Support".
2. after inspection, first apply CO6-1 iron alkyd primer, then apply CO4-42 alkyd magnetic paint of the same color as the support.
3. Marking, manufacturer, name Q-10/105X900, month and year of shipment, serial number of shipment
4. When shipped as a separate product, anti-rust, anti-ze, and anti-dust measures must be taken, and plastic plugs must be added to both fluid inlets.
Use:Hydraulic jack is the core hydraulic actuator element in the field of mining machinery, coal mine comprehensive mining equipment, etc., which can realize pushing, pulling, lifting, etc. through the telescopic movement of the cylinder body, and is widely used in mining hydraulic support, industrial lifting, building construction and other scenarios.
