| Brand Name: | Xinsheng |
|---|---|
| color: | white |
| Theory: | HPLC System |
| Resolution: | Standard |
| Size: | Standard |
| Model Number: | M-Prep EC2010 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Configure your preparative HPLC system, from injection to inspection, and select different materials, flow rates, valves, and detectors. High pressure infusion pump pump head and liquid contact materials can be selected SS316L, titanium alloy, PEEK, etc., suitable for the special requirements of different systems. Dual wavelength UV-VIS detectors for extended detection range and can also be equipped with differential refraction detectors or evaporative light detectors. the system is flexible and can be used with 20-50mm pre-filled columns and DAC-50 series columns.
Product parameters

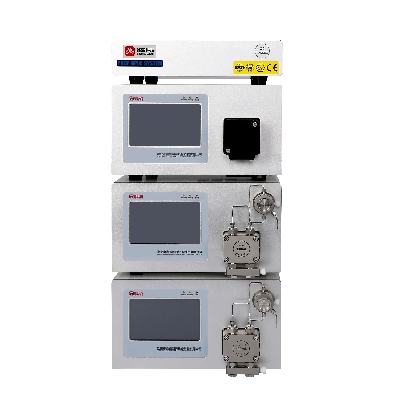

100ml Binary Preparative HPLC System-Touchscreen Model | |
Article Number |
LC021017T |
Model |
M-Prep EC2010 |
Prep HPLC Pump |
100ml/min(*2) |
UV Detector |
190-400nm(Deuterium and tungsten optional) |
Preparative Flow Cell |
1/16 |
Manual Injection Valve |
Standard(analytical or preparative injection valve) |
Sample Loop |
10ml(optional 20ml) |
Preparative Dynamic Mixer |
1/16",10Mpa,316L |
Online Filter |
30mm(1/16"),10Mpa,316L |
Chromatography Workstation |
LabChrom |
Solvent Tray |
Standard |
Start-up Kit |
Standard |
Fraction Collector |
Optional(eight channel) |
ID30/40/50 Prepacked Column |
Optional |
ID50 Spring Column |
Optional |
Adaptive DAC Column |
DAC-50 series column(optional) |
