| Brand Name: | Xinsheng |
|---|---|
| color: | white |
| Theory: | HPLC Column |
| Resolution: | Standard |
| Size: | Standard |
| Model Number: | DAC150 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

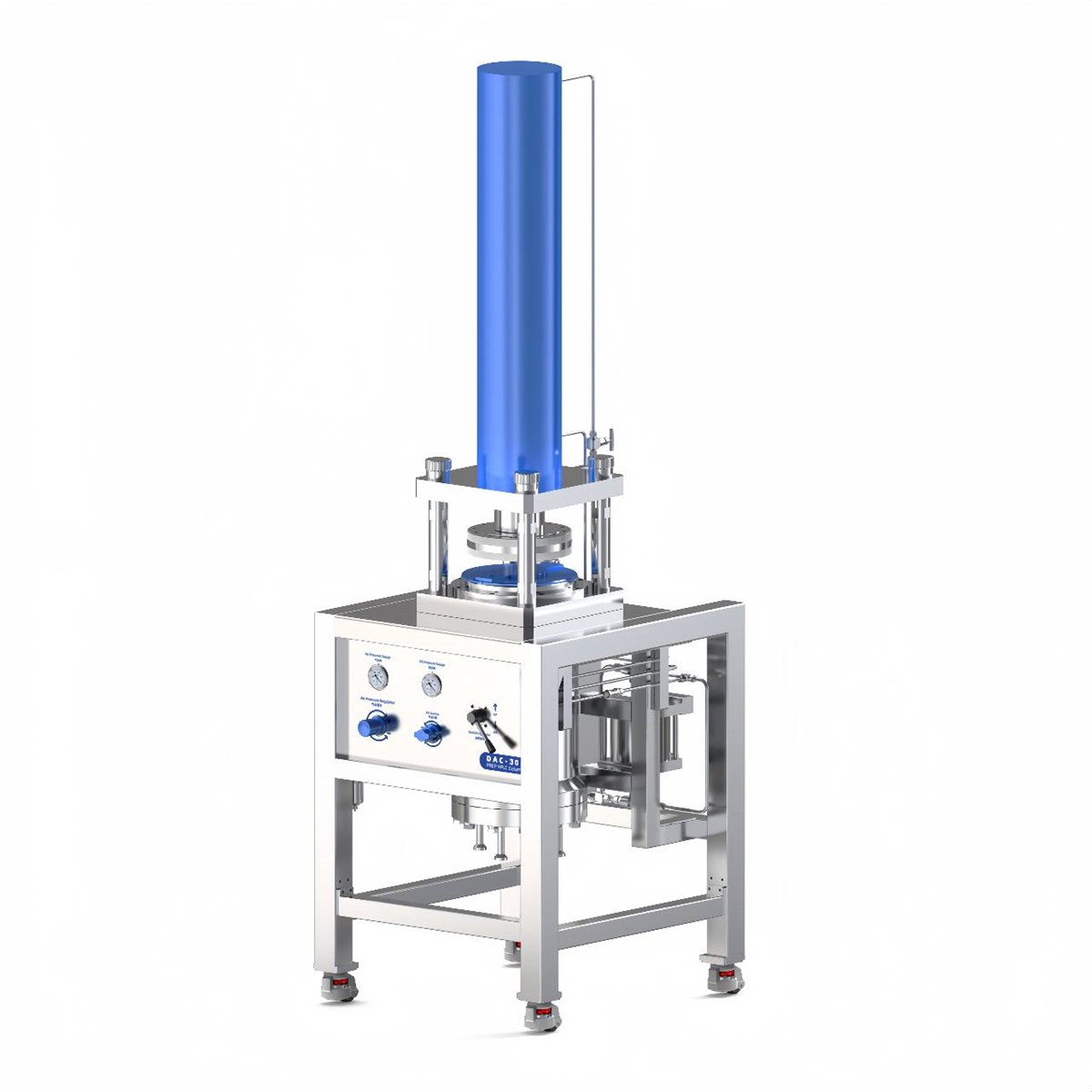

DAC columns use a movable piston attached to a hydraulic jack to pack the Column. the piston applies constant compression to the stationary phase, Which helps to ensure high efficiency and bed stability. the piston also Prevents mechanical degradation and maintains constant bed compression, Even if the bed swells or shrinks.
It can be used in large-scale industrial preparation-level applications such as Natural products, Synthetic drugs, protein peptides, and Plant extracts.
Technical parameters
Model |
DAC50 |
DAC100 |
DAC150 |
DAC200 |
DAC300 |
DAC400 |
|
Specifications of column tube (ID*length) mm |
50*650(Standard) |
100*650(Standard) |
150*650(Standard) |
200*650(Standard) |
300*650(Standard) |
400*650(Standard) |
|
Overall Size(W*D*H) mm |
560*560*2050 |
600*600*2280 |
630*720*2300 |
700*740*2600 |
900*920*2900 |
1200*1200*3000 |
|
Liquid contact material |
PTFE/316L | ||||||
Packing method |
Down packing | ||||||
Distribution form |
H-TREE distribution | ||||||
Effective packing height |
≤450mm | ||||||
Frit aperture |
2um |
||||||
Weight (kg) |
80 |
140 |
260 |
400 |
870 |
1400 |
|
Pressure |
10MPa | ||||||
Model |
DAC450 |
DAC600 |
DAC700 |
DAC800 |
DAC1000 |
DAC1200 |
||||||
Specifications of column tube (ID*length) mm |
450*650(Standard) |
600*650(Standard) |
700*650(Standard) |
800*800 |
1000*800 |
1200*1000 |
||||||
Overall Size(W*D*H) mm |
1100*1300*3200 |
1300*1500*3600 |
1400*1600*3800 |
1600*1800*4000 |
1800*2200*4300 |
2000*2200*4500 |
||||||
Liquid contact material |
PTFE/316L | |||||||||||
Packing method |
Down packing | |||||||||||
Distribution form |
H-TREE distribution | |||||||||||
Effective packing height |
≤450mm | |||||||||||
Frit aperture |
2um, 15um(Standard) |
|||||||||||
Weight (kg) |
2300 |
4500 |
5600 |
7000 |
9000 |
12000 |
||||||
Pressure |
10MPa | |||||||||||
