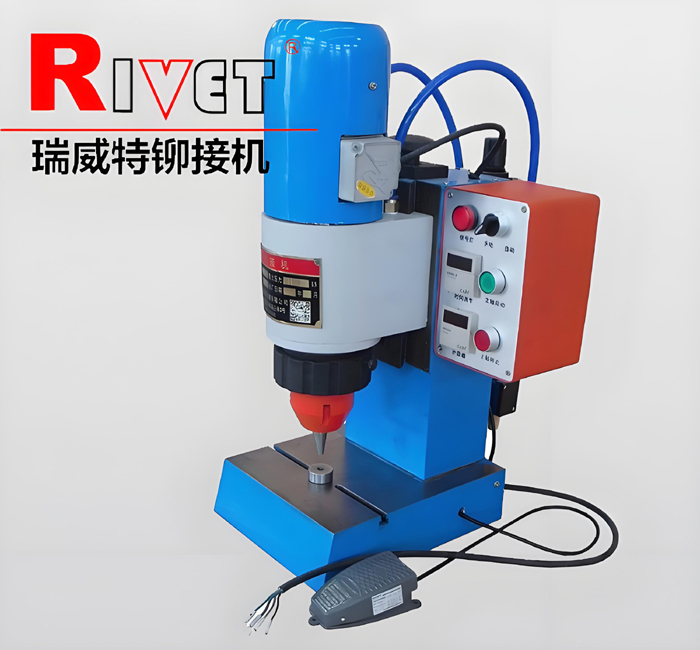

JM3TQ-B (Radial riveting machine)

Characteristics:

Pneumatic desktop

Max. Process Dia. Φ3mm (solid steel rivet)

Power head adjustable

Pneumatic with stepless regulation

Stroke speed adjustabl

Radial structure

Setting riveting time as will

Scope of application: instrumentations, hardware, electronic products,appliances etc.

Customized available:

     the model of JM3TQ-B is a kind of smaller desktop pneumatic riveting machine with radial structure. the machine's power head adjustment up and down to meet variety of workpiece's body and shape. the pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.05mm.

Specification:

 Max. Riveting diameter                      3mm (solid steel rivet )

 Max riveting pressure                       3.5Kn

 Working stroke                                  20mm

 Available work space                       55mm

 Throat deep                                       80mm

 Riveting tool length                            50mm

 Eccentric angle                                   4°

 Motive force                                      Pneumatic

 Workbench dimensions                  300mm140mm

 Power                                                0.18Kw

 Physical size                                    390mm330mm650mm

 Net weight                                        70Kg

 Air source                                         Pressure 4-5kgf/cm2, and flow 0.2 M3/ Min
