| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | Rivet |
| Weight: | 850KG |
| color: | Blue |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

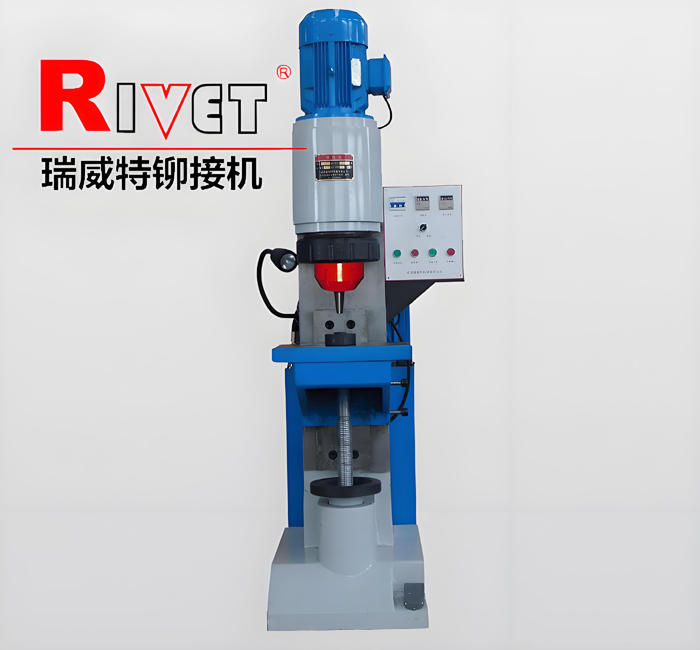

JM20(Radial riveting machine)
Characteristics:
Heavy duty vertical style
Riveting diameter 20mm
Workbench adjustable
Hydraulic driven by stelpless regulation
Rotary part proteced
Double-hand buttons or foot pedal as optional
Set riveting time as will
Customized available
Scope of application:Daily hardware, electrinic products, building fastener,automobile parts etc.
JM20 machine is a heavy duty radial hydraulic riveting machine, besides the utilization of the fifth generation Technology, the machine is also equipped with screw lift table (Stationary Base part), the table has a trapezoidal groove Clamps for the riveting die. the center of the working station is aligned with the spindle bore axis and it's used to better Positioning the fixture. the riveting speed can be easily controlled with the installation of one-way valve oil. the digital Electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or Disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way Valve. the workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. as a result of the above function and orbital design, the riveting operation goes with ease and the workpiece finishing is Created smoothly.
Specification:
Riveting diameter 20mm (solid steel rivet )
Riveting pressure 65Kn
Stroke Length Range 30mm
Available work space 260mm
Throat depth 225mm
Riveting tool length 62mm
Eccentric angle 4°
Motive force Hydraulic
Oil-tank volume 120 Liters
Pressure oil brand 46# ISO
Workbench dimensions 430mm290mm
Power 4.4Kw
Physical size 1070mm600mm1930mm
Net weight 850Kg
