1.Brief Introduction:

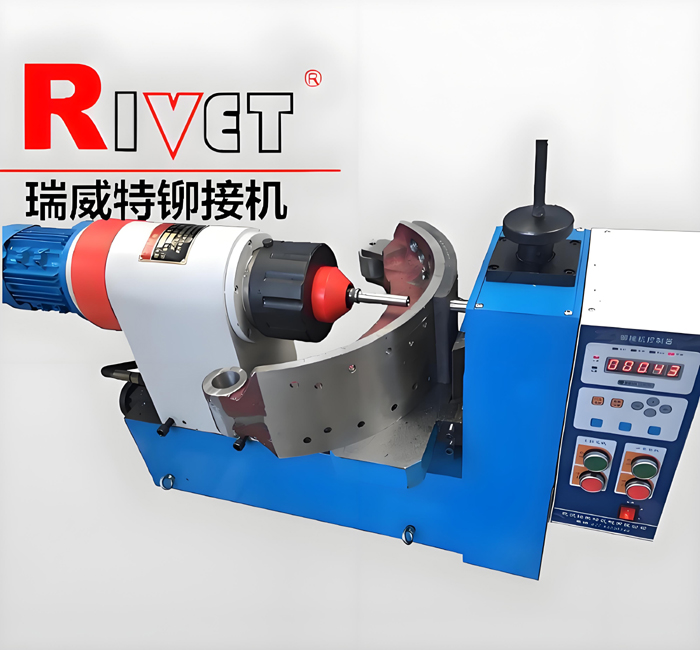

the purpose design of model BM9W is for processing brake shoes and linings, especially for heavy duty truck brake shoesand linings. Due to the brake shoes is heavy and difficult to carry by manual that the machine style by horizontal and putthe brake shoe and lining on workbench by horizontal direction. The machine by orbital structure and cold forming, theworkbench movable to meet brake shoe's different width and rivets position, and brake shoe no need to clamping duringprocessing. Hydraulic system equipped with throttle valve to control piston speed effectively. Electric control systemequipped with counter and time relay to made operation easy and simple. Oil tank can joint with machine and also canseparated from fuselage.





2.Techincal parameters:

Specifications:

Riveting diameter                      9mm ( solid steel rivet )

 Riveting pressure                     14Kn

Stroke Length Range                  60mm

Available space                          120mm

Throat depth                                135mm

Riveting tool lenght                     85mm

Eccentric angle                           3°24

Motive force                                Hydraulic

Workbench dimensions            400mm135mm

Power                                          0.92Kw

Physical size                              500mm400mm1000mm

Net weigh                                   280Kg





3.Performance features:

Horizontal style

Riveting diameterΦ9mm

Hydraulic or pneumatic as optional

Pressure by stepless regulation

Rotary part protected

Power head movable

Oil tank separate from fuselage

Orbital structure
