| Coil Number: | other |
|---|---|
| Coil Structure: | Toroidal |
| Phase: | Three |
| Usage: | Power |
| Brand Name: | GOANEN |
| Model Number: | SCB13 |
| Place of Origin: | China (Mainland) |
| Rated Capacity:: | 30-3150 KVA |
Quick Details
Specifications

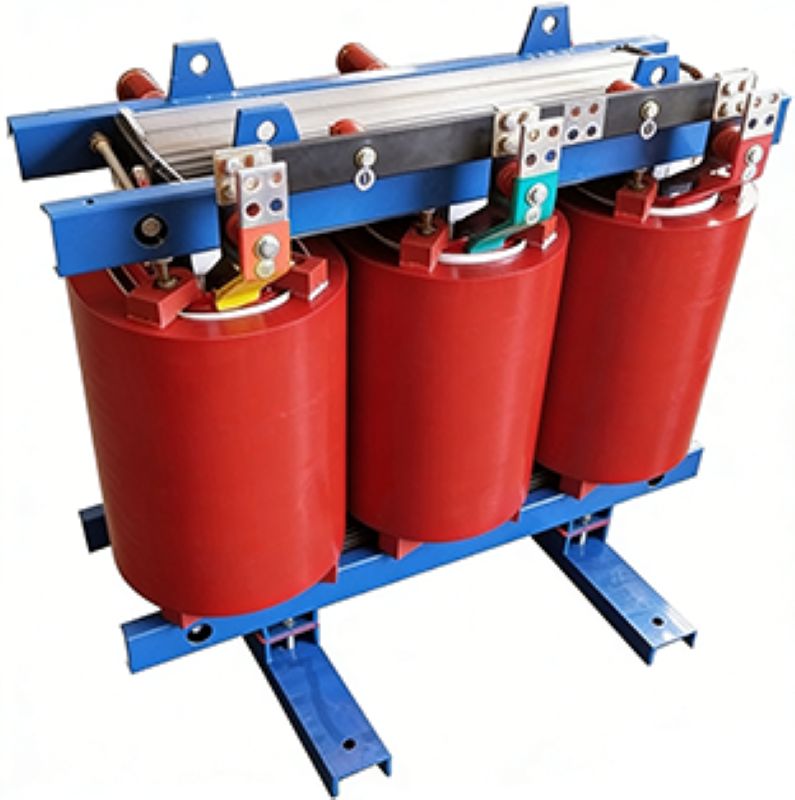

this product conforms to the national standard GB10941-2013 (IEC 60076) power transformer and GB/T6451-2015 indoor dry transformer technical parameters and requirements. Epoxy resin cast transformer is a kind of solid insulated encapsulated winding power transformer. Epoxy resin dry -type transformer adopts epoxy resin as insulation material. the high and low voltage winding adopts copper strip (foil), casting epoxy resin vacuum curing, forming high strength FRP body. Insulation grades are F and h. Epoxy resin dry type transformer has the characteristics of good electrical performance, strong lightning impact resistance, strong short-circuit resistance, smaller volume and lighter weight than others as well as other characteristics and so on. The temperature display controller can be installed to display and control the working temperature of the transformer winding to ensure the normal service life of the transformer.
Provide customization service, customize parameters and models according to requirements.
Industrial Power Transformer characteristics
1. Oil free, pollution free, flame retardant, self-extinguishing, fireproof.
2. Low loss, high efficiency, low noise. under forced air cooling conditions, it can run for a long time at 125% rated load and is equipped with an intelligent temperature controller. It has the functions of fault alarm, overtemperature alarm, overtemperature trip, black door and so on. through RS485 serial interface and computer connection, to achieve centralized monitoring.
3. Small partial discharge (less than 30pc), high reliability, can ensure long-term safe operation, life up to 30 years.
4. Temperature variation endurance, high mechanical strength, strong resistance to sudden short circuit.
5. Good moisture-proof performance, it can operate normally under 100% humidity, and can be put into operation without drying after shutdown.
6. There is no need for a separate transformer room, iron core maintenance or load-bearing beams, saving civil land and occupying no oil, so it will not produce toxic gases to pollute the environment. No sump pit or other ancillary buildings, reduce construction costs, easy installation, no commissioning, almost no maintenance; No need to change or check the oil, low operating and maintenance costs.
for more details please contact us with email
Provide customization service, customize parameters and models according to requirements.
Industrial Power Transformer characteristics
1. Oil free, pollution free, flame retardant, self-extinguishing, fireproof.
2. Low loss, high efficiency, low noise. under forced air cooling conditions, it can run for a long time at 125% rated load and is equipped with an intelligent temperature controller. It has the functions of fault alarm, overtemperature alarm, overtemperature trip, black door and so on. through RS485 serial interface and computer connection, to achieve centralized monitoring.
3. Small partial discharge (less than 30pc), high reliability, can ensure long-term safe operation, life up to 30 years.
4. Temperature variation endurance, high mechanical strength, strong resistance to sudden short circuit.
5. Good moisture-proof performance, it can operate normally under 100% humidity, and can be put into operation without drying after shutdown.
6. There is no need for a separate transformer room, iron core maintenance or load-bearing beams, saving civil land and occupying no oil, so it will not produce toxic gases to pollute the environment. No sump pit or other ancillary buildings, reduce construction costs, easy installation, no commissioning, almost no maintenance; No need to change or check the oil, low operating and maintenance costs.
for more details please contact us with email
