| Brand Name: | Goldland |
|---|---|
| Voltage: | 0 |
| Measuring Range: | 1 |
| Accuracy Class: | c |
| Display Type: | c |
| Model Number: | LXH |
Quick Details
Specifications

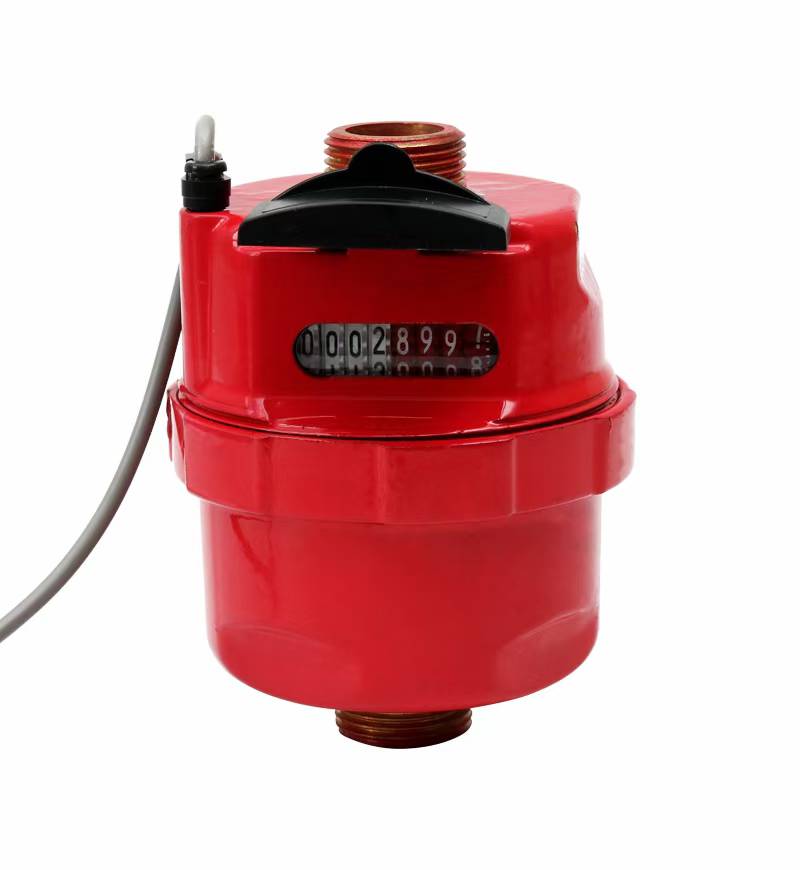

Quality:the meter body mainly consists of a top shell,bottom shell,and outer ring.
Optimum accuracy and performance at all times,in any position;
Revolutionary grooved piston for improved,durability and performance;
Durable tamperproof construction;
Volumetric measurement by rotary piston method,wet mechanism,high accuracy,liquid-sealed reading.both horizontal and vertical type is available.
Model LXH-15B is the world's favourite domestic water meter,with over 50 million already in service in over 100 countries,and offers accuracy,long life,low maintenance and tamperproof operation.Available in sizes 15mm,it offer unrivaled performance to ISO4064 Class C.
Temperature≤ 40℃
Pressure:≤ 1Mpa
ACCESSORIES
One meter with 2 pcs tubes,2 pcs nuts and 2 pcs gastkets for coupling.
NOTE
Technical data conform to International Standard ISO4064 R160
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.
| Tpye | Meter Size | Class | Maxflow | Nominal Flow |
Transition Flow |
Min Flow | Min Reading |
Max Reading |
|---|---|---|---|---|---|---|---|---|
| mm | m3/h | L/h | m3 | |||||
| LXH-15B | 15 | C | 3 | 1.5 | 22.5 | 15 | 0.0001 | 9999 |
| Tpye | Meter Size | Length | Wide | Heigh | Connecting Thread | Weight |
|---|---|---|---|---|---|---|
| mm | D | kg | ||||
| LXH-15B | 15 | 115 | 80 | 80 | G 3/4B | 1.1 |
