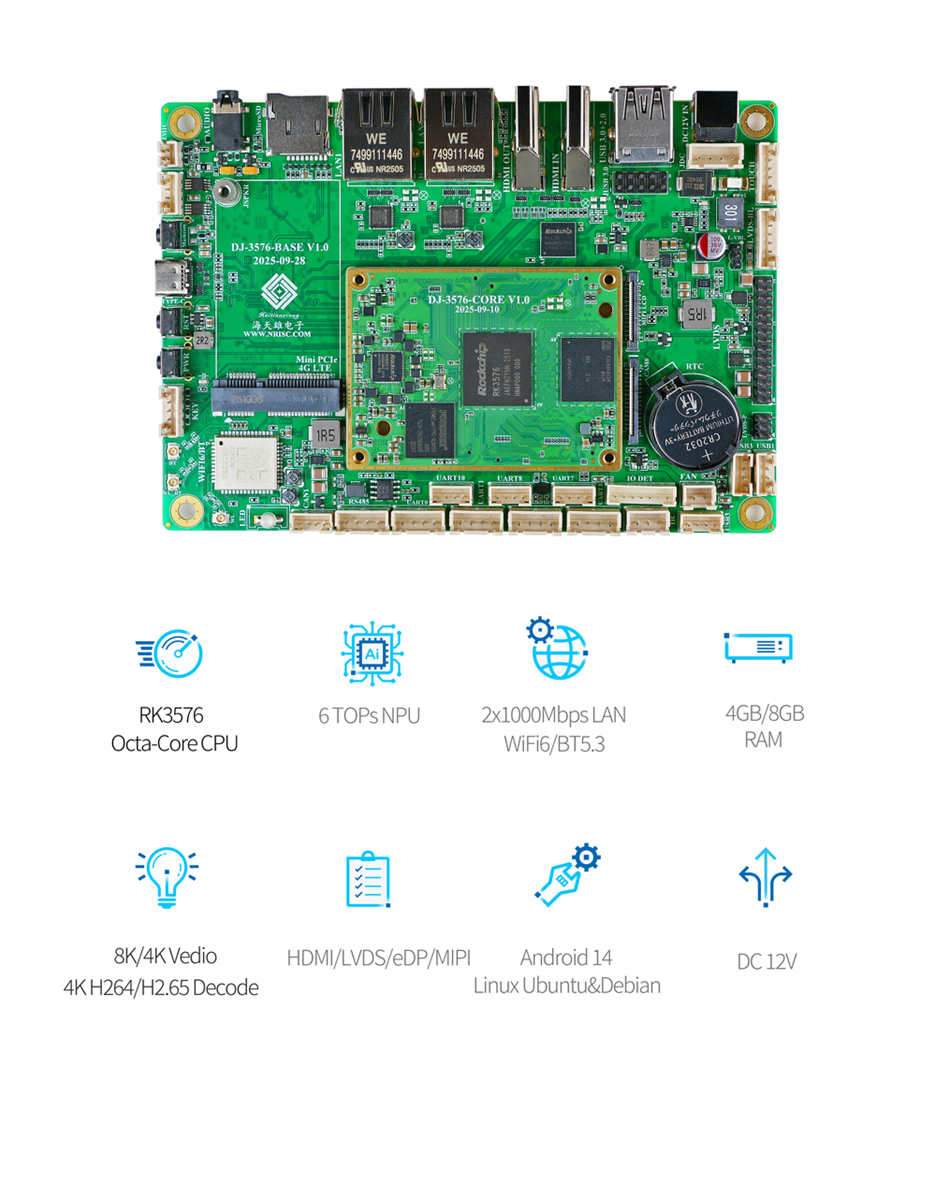

the DJ-3576 is a rugged 3.5-inch industrial single board computer, equipped with the Rockchip RK3576 high-performance embedded application processor. It integrates an eight-core CPU architecture (4Cortex-A72 + 4Cortex-A53) and a dedicated NEON coprocessor, offering excellent multitasking and energy efficiency. Its built-in ARM G52 MC3 GPU supports OpenGL ES 1.1/2.0/3.2 and integrates a 6 TOPS NPU, supporting mainstream AI framework model deployment. It can be widely used in high-complexity data processing/visual processing and intelligent inference scenarios.

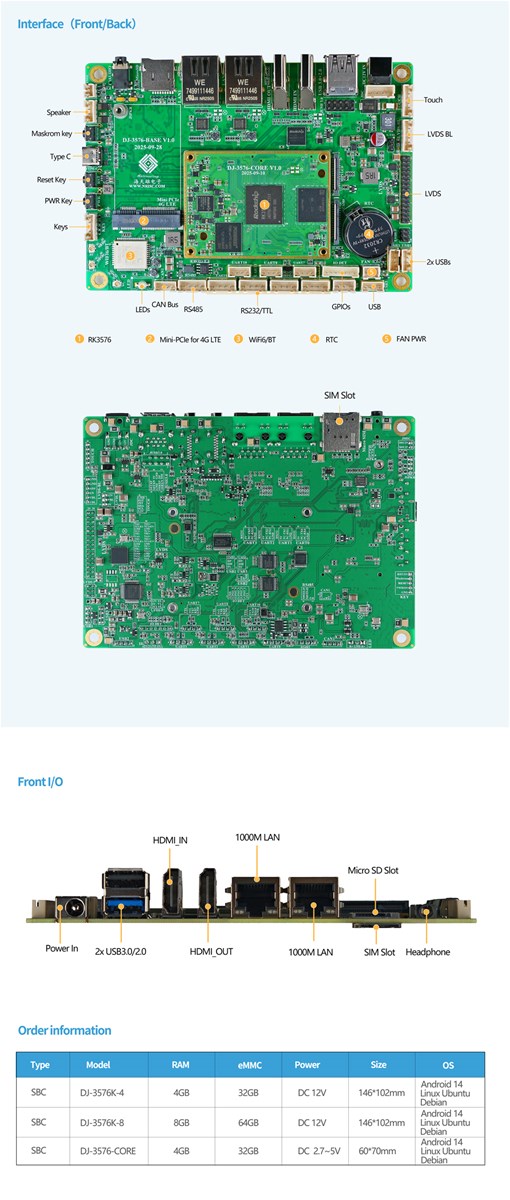

this motherboard offers a rich set of industrial application interfaces, is compatible with the previous generation DJ-3399/DJ-3288 platform, supports smooth upgrades and rapid integration, and is suitable for high-reliability application scenarios such as industrial control, machine vision, embedded intelligent devices, edge AI, intelligent robots, drones, medical devices, commercial displays and automation terminals.

Features

L   Dimension: 3.5"(146x102mm)

L   RockchipRK3576 64-bit high-performance Octa-core application processor @2.2GHz

L   IntegrationARM G52 MC3 GPU and 6 TOPS NPU

L   Supports 4K@120fps H.265/AV1/VP9 and 4K@60fps decode

L   on-board 4GB LPDDR5 + 32GB eMMC5.1

L   10-year supply cycle is suitable for long-term projects and product lifecycle management.

CPU	Rockchip RK3576 Octa-core   64-bit ARM processor  4Cortex-A72 + 4 Cortex-A53, up to 2.2GHz ARM G52 MC3 GPU, supports OpenGL ES   1.1/2.0/3.2 6 TOPS NPU, supports INT4/INT8/INT16/FP16/BF16/TF32
RAM	on-board 4GB LPDDR5, optional 8GB/16GB
eMMC	on-board 32GB   eMMC 5.1, optional 64GB/128GB 1 MicroSD(TF)slot
Display	1 HDMI 2.1(4Kx2K@120Hz)Output, 1x HDMI2.0 in 1 eDP1.3(4K@60Hz) 1 LVDS(19201080@60Hz) 1 MIPI-DSI(Supports high-resolution)
Audio	1 3.5mm Headphone 1 Dual-channel speaker interface 1 MIC in
Network	2 10/100/1000Mbps RJ45 on-board AP6275P Wi-Fi 6 + Bluetooth 5.3 Module 1 Mini PCIe Slot, Supports 4G/5G   Module(optional)
USB	1 USB 3.0 Type-C with DP Alt mode 1 x USB 3.0 Type A, 3 x USB2.0 Pin header
UART	1x RS232(Debug port) 1x RS485 by pin header; 3 x RS232 by pin header; 3 x TTL by pin header
Ext-Interface	Multi-functional   CAN BUS, 5x GPIOs, I2C, MIPI CSI, user buttons, etc.
Power	12V DC
Environment	Operating temperature: -20℃ ~ +60℃ Operating humidity:5% ~ 95% Relative Humidity, non-condensing
OS	Android 14, Linux Ubuntu and Debian
