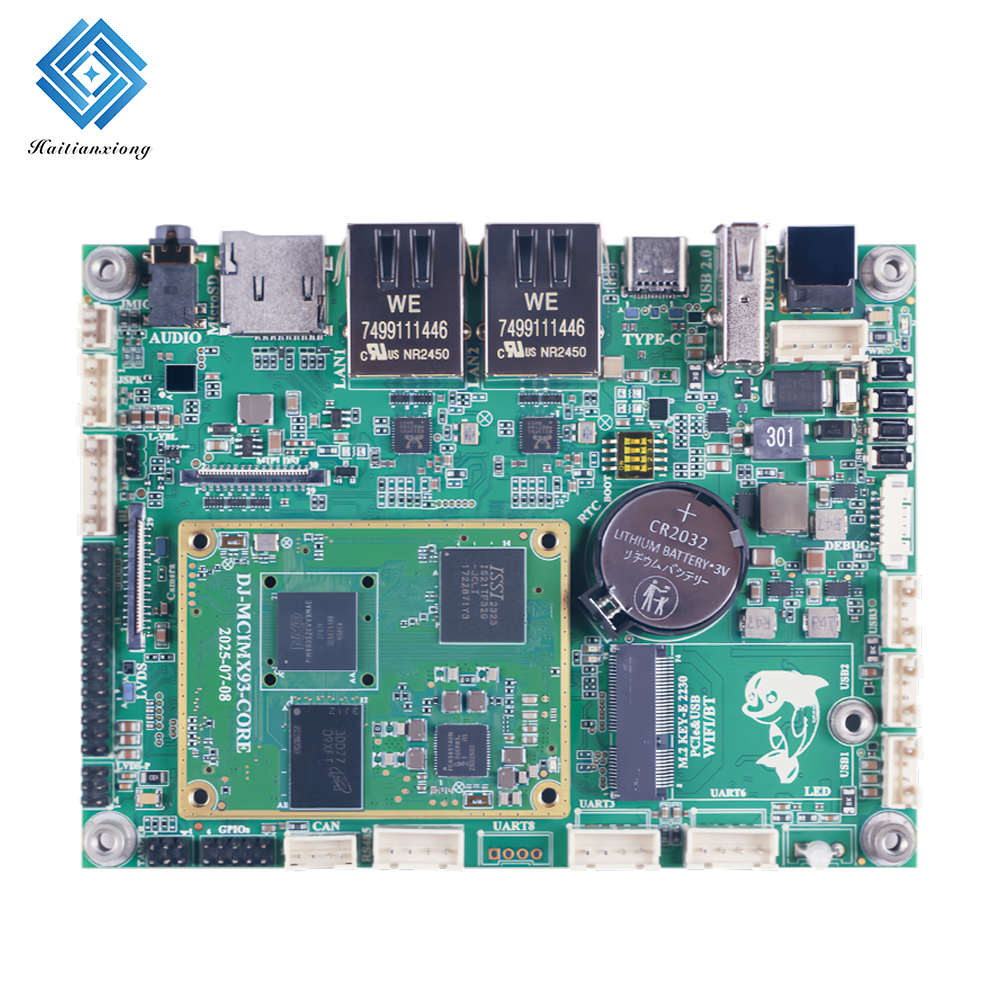

the DJ-MCIMX93 Single board computer (SBC) based on NXP's i.MX93 series application processor, featuring a dual-core Arm Cortex-A55 processor. It integrates features that help improve the performance and energy efficiency of Linux edge applications and the Arm Ethos?-U65 microNPU, enabling developers to create more powerful, cost-effective, and energy-efficient ML applications. Furthermore, it utilizes NXP's innovative Energy Flex architecture to optimize the performance and energy efficiency of industrial and IoT devices.

the DJ-MCIMX93 SBC features advanced information security, an integrated EdgeLock secure zone in the processor, and software-optimized Secure Boot, which significantly enhances device data security.

DJ-MCIMX93 SBC is an industrial-grade SBC with a wide temperature range, particularly suitable for product applications in extreme environments. It provides a rich application interface, including Gigabit Ethernet port, serial port, USB, CAN, MIPI-DSI/LVDS display interface, MIC/speaker/amplifier audio interface, GPIO, SD card slot and other peripheral interfaces.

DJ-MCIMX93 SBC offers high performance, low power consumption, and cost advantages, making it ideal for a wide range of applications in industrial control, Embedded devices, Measuring instruments, IoT gateways, Medical devices, Robotics, AI, Drones, and other fields.

Features

U   ARM Small form factor Single Board Computer with a lead-time up to 10 years

U   NXP i.MX8M Mini 2x Arm Cortex-A55@1.7GHz and 1x Arm Cortex-M33 250MHz processor

U   Based on NXP's i.MX9352 application processor, built-in dual-core ARM Cortex-A55 processor architecture, clocked at 1.7GHz

U   Onboard 1GB LPDDR4 Memory and 32GB eMMC5.1

U   5x USB2.0,4x UART,2x GbE LAN, 1x SD Card Slot, 1x M.2,15 GPIO, MIC-in, Line-out, 1x Speaker

U   Support Yocto Linux6.6.52

Dimension	118 x 88mm
CPU	NXP i.MX9352 L   Dual-core ARM Cortex-A55@ 1.7GHz L   ARM Cortex-M33@250Mhz L   Arm Ethos? U-65 microNPU, 0.5TOPS NPU L   EdgeLock Safe Zone L   GPU 2D/GPU 3D: PXP-Hardware Compositor
Memory	L   1GB LPDDR4 L   32GB eMMC5.1 L   1x microSD slot
Display	L   1x  LVDS Port(4 channels), Max Resolution   720p60 L   1x  MIPI DSI(4 channels@1.5Gbps), Max   Resolution 1080p60
Audio	L   1x Speaker interface(4Pin header) L   1x 3.5mm Headphone slot L   1x MIC in Pin Header
LAN	2x RJ45 LAN 10/100/1000Mbps
Wireless	L   1x M.2 KEY-E2230 PCIe slot L   on-board NXP Wi-Fi Tri-band IW612 M.2 Module L   on-board WIFI5.0+BT5.1 Module
USB	L   1x USB 2.0 Type C with PHY L   1x USB 2.0 Type-A L   3x USB 2.0 Pin Header
UART	L   1x Debug Port L   1x RS485(with UART6 multiplexing) L   2x RS232/TTL(default RS232 Type) L   2x TTL/RS232(default TTL Type)
CAN	1x CAN Bus(4pin Header)
Camera	L   1x MIPI CSI, supports AR0144 L   Supports USB UVC Camera
Keys	Power on/off, Reset, Boot Switch
LEDs	Dual-color LED light (Red, Green)
RTC	Support, on-board CR2032 lithium battery
Power supply	L   DC-in 12V L   1x DC-in JACK L   1x 4PIN Header
Environment	Operation Temperature: -40℃ -  85℃ Operation Humidity: 10%~95%RH@31℃, no condensation Storage Temperature:   -40℃~ -125℃ Storage Humidity: 5%~95%RH@39℃, no condensation
OS	Yocto liunx6.6.52
