| Hard Drive Interface: | SATA |
|---|---|
| Graphics Card Type: | Integrated |
| Memory Type: | DDR3 |
| Chipset Manufacturer: | NXP |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | DJ-IMX8M-PLUS |
| Brand Name: | Shenzhen Haitianxiong |
| Form Factor: | |
| Socket Type: | |
| Application: | |
| Size: | 146x102mm |
| CPU: | NXP i.MX8M Plus |
| RAM: | 2GB LPDDR5 |
| eMMC: | 16GB eMMC5.1 |
| OS: | Linux and Android |
Quick Details
Specifications

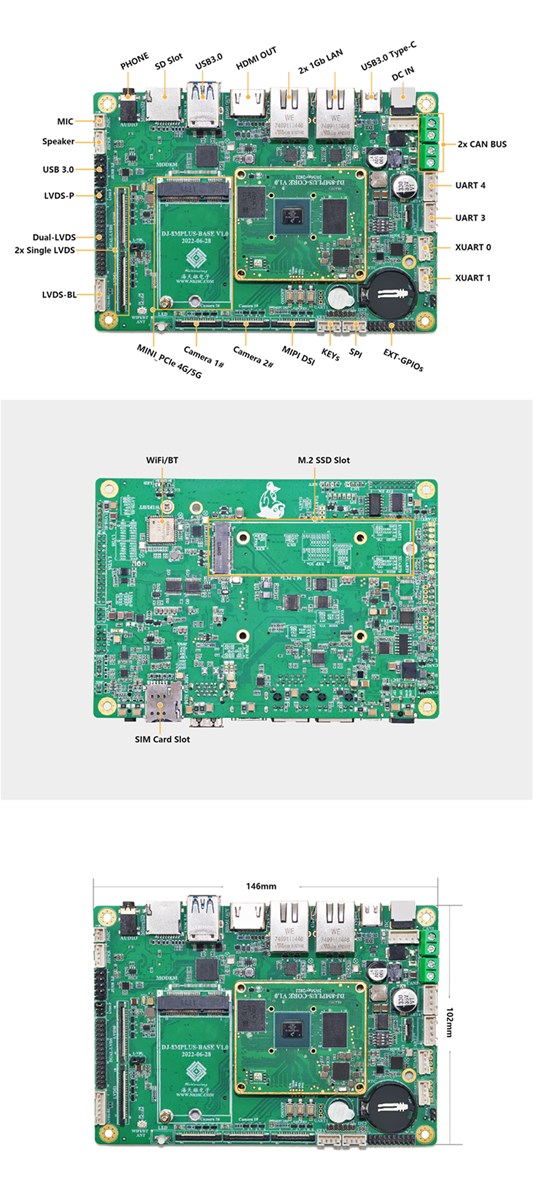

the DJ-8MPLUS is designed with standard 3.5-inch industrial motherboard and is a highly reliable and cost-effective embedded industrial control ARM motherboard. It is based on NXP's i.MX 8M Plus series of embedded multi-core application processors, integrating a Quad-core/Dual-core Arm Cortex-A53 processor with a neural processing unit (NPU) and a computing power of up to 2.3 TOPS. It focuses on machine learning and vision, advanced multimedia, and industrial automation with high reliability. It is designed to meet the needs of smart homes, buildings, cities, and Industry 4.0 applications.
the DJ-8MPLUS motherboard adopts the core board and carrier board architecture, which helps customers save development time and quickly form their own products. Customers can directly use the motherboard or use the core board and customize the design of the baseboard as their final product.
the DJ-8MPLUS has the characteristics of high integration, low power consumption, high performance, and long supply cycle, and provides a wealth of industry application interfaces to greatly meet the needs of the target system. the motherboard integrates LVDS, MIPI, HDMI, dual Gigabit Ethernet, M.2 2280 SSD interface, TF card, WiFi/BT, 4G/5G, USB, UART, CAN FD, GPIO, AUDIO, RTC and other functions and interfaces, and supports many peripheral expansions.
the DJ-8MPLUS has the advantages of stable and reliable industrial-grade product performance, high cost performance and low power consumption. It is equipped with Android and Linux software operating systems and can be widely used in industrial control, medical equipment, communication control, traffic control, information systems, financial equipment, automobiles, digital control and various terminal markets.
Features:
3.5-inch industrial-grade motherboard (146x102mm), suitable for different application spaces
NXP i.MX8M Plus series application processor ARM Quad Cortex-A53 + Cortex-M4
4K HDMI, dual-channel FHD LVDS, 4 Lanes MIPI DSI interface
Dual Gigabit LANs, M.2 E-key (2230) Mini PCIe socket, support 4G/5G LTE module
Embedded I/O for COM, GPIO, USB 3.0, USB-OTG, Audio and Ethernet
Wide-range operating temperature: -40℃~80℃ CPU CPU NXP i.MX8M Plus series MIMX8ML8CVNKZAB, frequency up to 1.6GHz ARM Quad Cortex-A53 and Cortex-M7 MCU GPU 3D GPU GC7000UL, 2D GPU GC520L 1080p60 H265, H264, VP9, VP8 decoder 1080p60 H265, H264 encoder NPU Neural Processing Unit 2.3 TOPS Memory RAM 4GB LPDDR4(optional 6GB/8GB) eMMC 16GB eMMC5.1(optional 32GB/64GB/128GB) Cache L1: 32Kbyte instruction, 32Kbyte data L2: Unified data/instruction, 512 K TF Slot 1x TF Slot, supports 32GB/64GB/128GB M.2 1x M.2 2280 SSD interface, PCIE-NVME protocol(supports 256GB/512GB/1T) B2B Connector Connector Four 2x 40PIN industrial grade high speed connectors Pins 320Pins Ethernet LAN 2x 1000M LAN with RJ45 4G/5G interfaces 1x MINI PCIe Slot, supports 4G/5G, in SIM Slot WiFi/BT 1x WiFi/BT Two-in-one module, support WiFi 802.11 a/b/g/n/AC and BT5.2 Displays LVDS 1x Dual-channel FHD LVDS(2x 15-pin header), supports Dual six/eight, Single six/eight LVDS ( up to1920x1200p60) 2x Single LVDS(40-pin header with I2C of Touch), Shared with dual channel interface, supports single eight, single six LVDS interface LCD screen(up to 1280x720p60) MIPI DSI 1x 4 Lanes MIPI DSI (up to 2560x1080p60 or 2560x1440p30) HDMI Out 1x HDMI2.0 OUT, 4K BL Controller 1x LVDS BL Supply Power Touch Screen interface Support capacitive touch screen with USB interface Audio Headphone 1x 3.5mm Headphone jack (stereo, microphone input) Speaker interface 1x Speaker(4-pin header) with power amplifier circuit, supports left and right channel output, built-in 8Ω/2W power amplifier MIC 1x MIC(2-pin header), Can connect various microphones USB USB3.0 HOST 2x USB 3.0 HOST Type-A 1x USB 3.0 HOST(Hub Extensions, 4-pin header) USB3.0 Type-C 1x USB3.0 Type-C Socket UART Debug UART 2 x TTL (one of which is used as a debug serial port, UART2) User UART 2x RS232/TTL (default RS232) 2x TTL/RS232(default TTL) CAN Bus CAN bus 2x Flex CAN Camera interfaces CMOS 2x MIPI Camera(4 Lanes, Camera 1#, Camera 2#) USB Support various USB UVC cameras Application Peripheral Interface GPIO 1x 15 GPIOs Keys 1x Keys(Power, Reset, CPU Power) LEDs 1x LEDs(Red, Blue) RTC Support Sleep/awake Support System Upgrade Support local USB, TF upgrade Power supply 12V DC-in jack and Internal Header Operation Environment Temperature: -40℃~+85℃, humidity: 10%~90%RH@31℃ Storage Environment Temperature: -40℃~125℃, humidity: 5%~95%RH@39℃ OS Linux5.10, Android13 Form Factor 3.5-in SBC (102x 146mm)
