| Brand Name: | Gondu |
|---|---|
| Processor Type: | AMD Phenom |
| Processor Brand: | AMD |
| Application: | Desktop |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | 066B |
| Main Frequency: | 12V |
| Socket Type: | Socket 370 |
| L2 Cache: | 4MB |
| Type: | Quad-Core |
Quick Details
Specifications

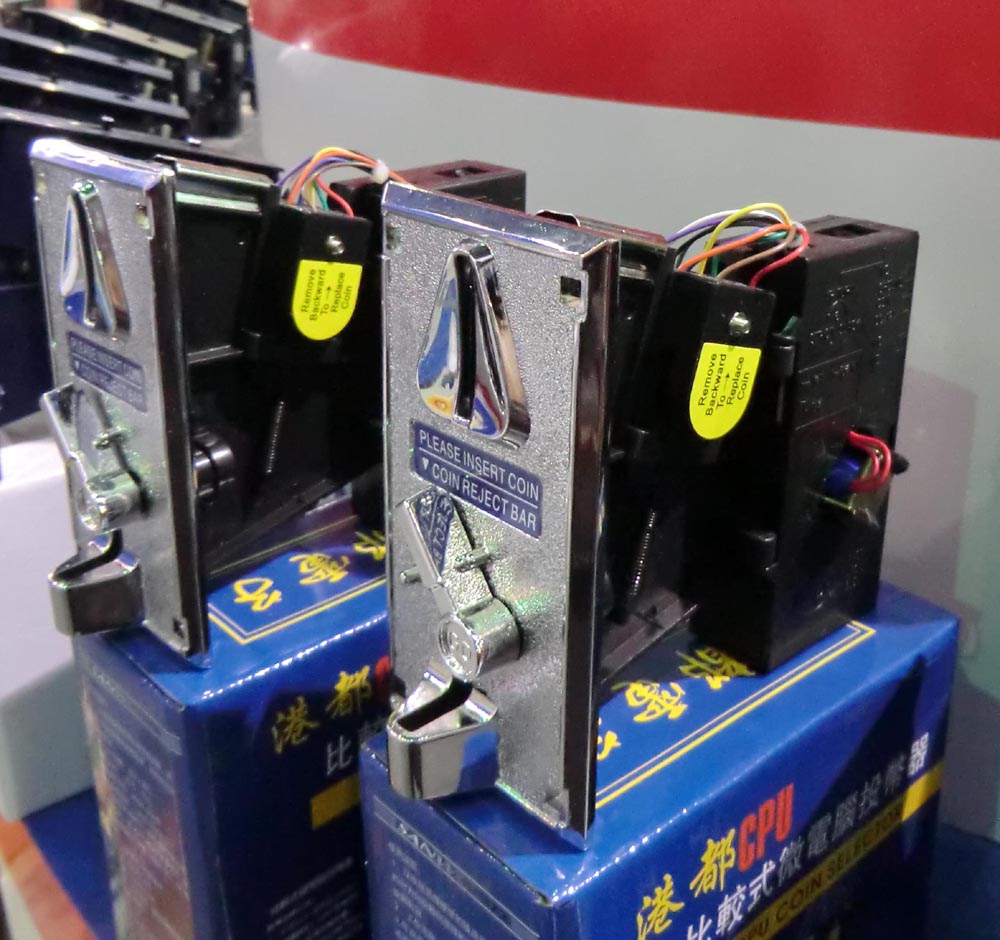

15 years long history model,Elite model.Anti-false coin.Anti-string,anti-jam,anti-fishing.Support large coin,thick coin,small coin.Stable performance,accurately recognize.Smoothly deposit)
Specifications
.Rating voltage: DC+12V with 20percent discrepancy .Stand by Current: 50mA-55mA .Operating Current: 310mA-340mA .Accepted coin diameter: 18mm-32mm .Accepted coin thickness: 1.2mm-3.0mm .Size per unit: W14 x D6.5 x H12.5(mm) .Net weight: 0.38kgs .Packing: 50 pcs/case .Per case: 17.86 kgs .Size per case: W745 x D352 x H275(mm)
1 Remove the yellow plastic sample coin from the clamp & repace the coin to the clamp.
2. Choose N.O/ N.C in coordination with the machine specification.
3. VR turning for sensitivity of coin acceptance: turn clockwise (+)for strict coin selecting: anti-clockwise(-)for slack.
4. Wiring diagram
1)Empty
2)Black line GND
3)White line coin signal & coin counter
4)Red line DC+12V
